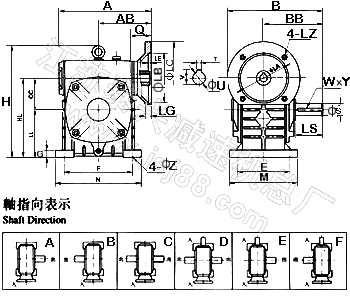

单级标准FCDS型蜗轮减速机
|
Size |
Inpower
KW |
Ratio |
A |
AB |
B |
BB |
CC |
E |
F |
G |
H |
HL |
LL |
M |
N |
Z |
|
50 |
0.18 |
1/5
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60 |
155 |
84 |
165 |
95 |
50 |
95 |
110 |
15 |
180 |
130 |
80 |
120 |
140 |
11 |
|
60 |
0.37 |
170 |
92 |
190 |
110 |
60 |
105 |
120 |
20 |
205 |
150 |
90 |
130 |
150 |
11 |
|
70 |
0.37 |
206 |
110
|
210 |
130 |
70
|
115 |
150 |
20 |
235 |
175 |
105 |
150 |
190 |
15 |
|
0.75 |
230 |
|
80 |
0.75 |
232 |
128
|
240
|
140
|
80
|
135
|
180
|
20
|
265
|
200 |
120 |
170 |
220 |
5 |
|
1.5 |
|
100 |
1.5 |
266 |
145 |
263 |
163 |
100 |
155
|
220
|
25
|
363
|
250 |
150 |
190 |
260 |
15 |
|
2.2 |
270 |
149 |
288 |
|
120 |
2.2 |
340 |
182
|
310
|
185
|
120
|
180
|
260
|
30
|
424
|
300 |
180 |
230 |
320 |
18 |
|
3.0 |
|
135 |
3.0 |
375 |
200
|
335
|
210
|
135
|
200
|
290
|
30
|
481
|
350 |
215 |
250 |
350 |
18 |
|
4.0 |
|
155 |
5.5 |
442 |
236 |
402 |
252 |
155 |
220 |
320 |
32 |
536 |
390 |
235 |
280 |
390 |
20 |
|
175 |
7.5 |
465 |
240 |
412 |
262 |
175 |
250 |
350 |
40 |
550 |
435 |
260 |
310 |
430 |
20 |
|
Si5ze |
Flange |
Output Hole |
Output HShaft |
Weight
Kg |
|
LA |
LB |
LC |
LE |
LG |
LZ |
Q |
U |
T×V |
LS |
S |
W×Y |
|
50 |
115 |
95 |
140 |
5 |
10 |
M8 |
25 |
11 |
4×12.8 |
40 |
17 |
5×3 |
7 |
|
60 |
130 |
110 |
160 |
5 |
12 |
M8 |
35 |
14 |
5×16.3 |
50 |
22 |
7×4 |
11 |
|
70 |
130 |
110 |
160 |
5 |
12 |
M8 |
35 |
14 |
5×16.3 |
60 |
28 |
7×4 |
14 |
|
165 |
130 |
200 |
15 |
M10 |
45 |
19 |
6×21.8 |
|
80 |
165 |
130 |
200 |
5 |
15 |
M10 |
45 |
19 |
6×21.8 |
65 |
32 |
10×4.5 |
23 |
|
55 |
24 |
8×27.3 |
|
100 |
165 |
130 |
200 |
5 |
12 |
M10 |
52 |
24 |
8×27.3 |
75 |
38 |
10×4.5 |
38 |
|
215 |
180 |
250 |
15 |
M12 |
62 |
28 |
8×31.3 |
|
120 |
215 |
180 |
250 |
5 |
18 |
M12 |
65 |
28 |
8×31.3 |
85 |
45 |
12×4.5 |
65 |
|
135 |
215 |
180 |
250 |
5 |
18 |
M12 |
65 |
28 |
8×31.3 |
95 |
55 |
15×5 |
84 |
|
155 |
265 |
230 |
300 |
5 |
20 |
M12 |
85 |
38 |
10×41.3 |
110 |
60 |
15×5 |
120 |
|
175 |
265 |
230 |
300 |
6 |
18 |
M12 |
85 |
38 |
10×41.3 |
110 |
65 |
18×6 |
155 |
|
