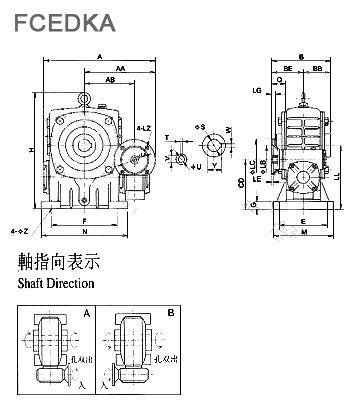

双级FCEDKA型蜗轮减速机
|
型 号
Size |
入功率
KW |
减速比
Ratio |
A |
AA |
AB |
B |
BB |
BE |
CD |
E |
F |
G |
H |
M |
N |
|
40-60 |
0.12 |
1/200
1/300
1/400
1/500
1/600
1/800
1/900 |
258 |
182 |
112 |
135 |
58.5 |
76 |
100 |
105 |
120 |
20 |
210 |
130 |
150 |
|
50-80 |
0.18 |
314 |
209 |
139 |
156 |
72 |
84 |
130 |
135 |
180 |
20 |
278 |
170 |
220 |
|
60-100 |
0.37 |
363 |
241 |
161 |
180 |
87.5 |
92 |
160 |
155 |
220 |
25 |
372 |
190 |
260 |
|
70-120 |
0.37 |
429 |
275 |
195 |
210 |
100 |
110 |
190 |
180 |
260 |
30 |
430 |
230 |
320 |
|
0.75 |
449 |
295 |
|
80-135 |
0.75 |
505 |
330 |
230 |
234 |
106 |
128 |
215 |
200 |
290 |
30 |
491 |
250 |
350 |
|
1.5 |
|
100-155 |
1.5 |
565 |
365 |
265 |
301 |
156 |
145 |
235 |
220 |
320 |
38 |
526 |
280 |
390 |
|
2.2 |
590 |
390 |
305 |
149 |
|
120-175 |
2.2 |
635 |
415 |
290 |
349 |
167 |
182 |
280 |
250 |
350 |
40 |
565 |
310 |
430 |
|
3.0 |
|
135-200 |
3.0 |
691 |
448 |
323 |
373 |
173 |
200 |
310 |
290 |
390 |
42 |
625 |
360 |
480 |
|
4.0 |
|
型 号
Size |
LL |
Z |
电机法兰Flange |
入力孔Input Hole |
出力孔Output Hole |
|
LA |
LB |
LC |
LE |
LG |
LZ |
Q |
U |
T×V |
S |
W×Y |
|
40-60 |
120 |
11 |
115 |
95 |
140 |
5 |
10 |
M8 |
25 |
11 |
4×12.8 |
25 |
8×28.3 |
|
50-80 |
160 |
15 |
115 |
95 |
140 |
5 |
10 |
M8 |
25 |
11 |
4×12.8 |
35 |
10×38.3 |
|
60-100 |
200 |
15 |
130 |
110 |
160 |
5 |
12 |
M8 |
35 |
14 |
5×16.3 |
40 |
12×43.3 |
|
70-120 |
240 |
18 |
130 |
110 |
160 |
5 |
12 |
M8 |
35 |
14 |
5×16.3 |
45 |
14×48.8 |
|
165 |
130 |
200 |
15 |
M10 |
45 |
19 |
6×21.8 |
|
80-135 |
270 |
18 |
165 |
130 |
200 |
5 |
15 |
M10 |
45 |
19 |
6×21.8 |
60 |
18×64.4 |
|
55 |
24 |
8×27.3 |
|
100-155 |
290 |
20 |
165 |
130 |
200 |
5 |
12 |
M10 |
52 |
24 |
8×27.3 |
70 |
20×74.9 |
|
215 |
180 |
250 |
15 |
M12 |
62 |
28 |
8×31.3 |
|
120-175 |
335 |
20 |
215 |
180 |
250 |
5 |
18 |
M12 |
65 |
28 |
8×31.3 |
80 |
22×85.4 |
|
